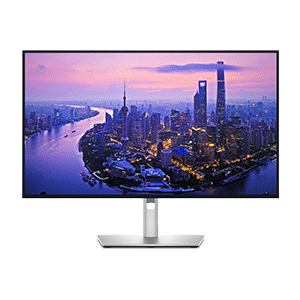

Dell Ultrasharp U2725QE 27 inch 4K Thunderbolt Hub Monitor

Specifications

Technical Information

Number of Screens
1

Screen Size Class
27"

Viewable Screen Size
27"

Screen Mode
4K UHD

Panel Technology
In-plane Switching (IPS) Black Technology

Response Time Details
5ms GTG (Fast)
8ms GTG

Aspect Ratio
16:9

Pixel Pitch
0.1554 mm x 0.1554 mm

Horizontal Viewing Angle
178°

Vertical Viewing Angle
178°

Mount Type
Panel Mount

Backlight Technology
LED Edgelight System

HDCP Supported
Yes

Maximum Adjustable Height
5.91"

Tilt Angle
-5° to 21°

Swivel Angle
-45° to 45°

Pivot Angle
-90° to 90°

Features
VESA DisplayHDR 600
sRGB
Eye Comfort Technology
Low reflectance with anti-glare and hard-coating 3H
Picture by Picture
Picture in Picture
Color Calibration
Ambient Light Sensor
Cable Lock Slot
Security Lock
BFR Free
PVC Free
Arsenic-free Glass
Mercury-free
Narrow Bezel

Horizontal Frequency
30 kHz to 275 kHz

Vertical Frequency
48 Hz to 120 Hz

Adjustable Stand
Yes

Stand Adjustments
Tilt
Pivot
Height
Swivel

Stand Included
Yes

Glass Hardness
3H

Soundbar Compatibility
Optional soundbar (sold separately)

Video

Maximum Resolution
3840 x 2160

Standard Refresh Rate
120 Hz

Color Supported
1.07 Billion Colors

Native Contrast Ratio
3,000:1

Brightness
450 cd/m2
600 cd/m2

Color Gamut
DCI-P3 99% (CIE1976) (typical)
Display P3 99%
sRGB 100% (CIE1931) (typical)
BT.709 100%
Delta E <1.5 (Average)

Pixel Per Inch (PPI)
163

Interfaces / Ports

DisplayPort 1.4 with DSC support (DRR for Microsoft Windows)
DisplayPort 1.4 out
HDMI port supporting up to UHD 3840 x 2160 120Hz FRL, VRR as per HDMI 2.1
Thunderbolt 4 upstream port with DP1.4 (HDCP 2.2), DSC support, Power Delivery up to 140W EPR, 2/4 lane switching
Thunderbolt 4 downstream port, daisy chain, 15W
USB-C upstream port (USB 10Gbps KVM)
Analog 2.0 audio line out port (3.5 mm)
4 USB Type-A ports 10Gbps
RJ45 Ethernet port, 2.5GbE

Quick Access Port
USB Type-A 10Gbps with BC 1.2
2 USB-C 10Gbps downstream ports

USB Type-C Power Delivery
Up to 140W EPR

Audio Line Out
Yes

Built-in Devices

Ambient Light Sensor

Environmental Conditions

Operating Temperature Range
32°F (0°C) to 104°F (40°C)

Non-operating Temperature Range
-4°F (-20°C) to 140°F (60°C)

Operating Humidity Range
10% to 80% (Non-condensing)

Non-operating Humidity Range
5% to 90% (Non-condensing)

Maximum Operating Altitude
16,400 ft

Maximum Non-operating Altitude
40,000 ft

Power Description

Input Voltage Range
100V AC to 240V AC

Operating Power Consumption
25.40 W

Standby Power Consumption
0.5 W

Off-Mode Power Consumption
0.3 W

Frequency
50 Hz / 60 Hz

Maximum Power Consumption
325 W

Voltage Current
4 Ah

Physical Characteristics

VESA Mount Compatible
Yes

VESA Mount Standard
100 x 100

Height
13.92"

Width
24.11"

Depth
2.19"

Height with Stand
21.09"

Width with Stand
24.11"

Depth with Stand
7.44"

Compressed Height with Stand
15.18"

Extended Height with Stand
21.09"

Weight (Approximate)
11.51 lb

Weight with Stand (Approximate)
15.56 lb

Miscellaneous

Package Contents
UltraSharp 27 4K Thunderbolt Hub Monitor U2725QE
Stand
Drivers and documentation media
QR Card
Safety Information

Cables Included
Power cable
DisplayPort to DisplayPort cable (1.80 m)
USB Type-A to Type-C upstream cable (1.00 m)
Thunderbolt 4 passive cable (1.00 m)

Energy Star
Yes

Country of Origin
China

TAA Compliant
Yes

TCO Certified
Yes

Dell Display Manager Compatibility
Yes

Environmentally Friendly
Yes

Environmental Certification
TCO Certified Edge

Energy Efficiency Certification
ENERGY STAR 8.0

Energy Efficiency Compliance
Energy-related Products Directive Lot 5 (ErP Lot 5)

Environmental Compliance
Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty
3 Years

Additional Warranty Information
3 Years Limited Hardware and Advanced Exchanged Service
