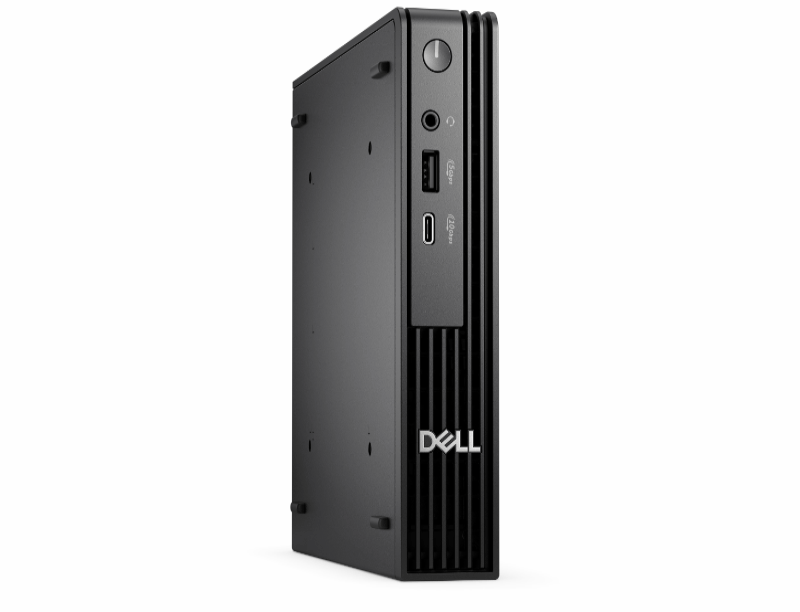

Dell Pro Micro QCM1250 | Core i5-14500T | 8GB DDR5 | 512GB SSD | Intel Integrated Graphics | Win11 Pro

Specifications

Model

Dell Pro Micro QCM1250

Processor

Intel® Core i5-14500T 14 Cores Up to 5.0 GHz

Operating System

Windows 11 Pro

Graphics

Intel® Integrated Graphics

Memory

8GB (1 × 8GB) DDR5 Up to 4800 MT/s

Storage

512GB M.2 2230 SSD PCIe Gen 4x4 TLC

System Monitoring

Watch Dog SRV

Intel Rapid Storage Technology

IRST Driver

Systems Management

Intel vPro Management Disabled

Front Ports

1 × USB 3.2 Gen 2 Type-C® (10 Gbps) 1 × USB 3.2 Gen 1 (5 Gbps) 1 × Headset Port (Headphone and Microphone Combo)

Rear Ports

1 × USB 3.2 Gen 1 (5 Gbps) with SmartPower On 1 × USB 3.2 Gen 1 (5 Gbps) 2 × USB 2.0 (480 Mbps) 1 × DisplayPort 1.4a (HBR2 support) for Intel® Core 300T, i3, i5, and i7 processors 1 × HDMI 2.1 1 × RJ45 Gigabit Ethernet (10/100/1000 Mbps) 1 × Power-Adapter Port 1 × Optional Module Port

Optional Module Port

For systems with Intel® Core Ultra processors: HDMI 2.1 FRL, DisplayPort 2.1 (UHBR20), VGA, USB Type-C® with DisplayPort Alt Mode, 2 × USB-A 3.2 Gen 2, PS/2 and Serial, Serial Module, or 5G Optical Fiber

For systems with Intel® Core 300T, i3, i5, and i7 processors: HDMI 2.1 TMDS, DisplayPort 1.4a (HBR3), VGA, USB Type-C® with DisplayPort? Alt Mode, 2 × USB-A 3.2 Gen 2, PS/2 and Serial, Serial Module, or 5G Optical Fiber

Expansion Slots

1 × M.2 2230 Slot for Wi-Fi and Bluetooth Combo Card 2 × M.2 2230/2280 Slots for Solid-State Drives

Wireless Connectivity

M.2 2230 Slot for Wi-Fi and Bluetooth Combo Card

Audio

Internal Speaker

Monitor Mount

OptiPlex Micro and Thin Client Pro1 E-Series Monitor Mount with Base Extender

Power Cord

System Power Cord, E5 2 m 125V, 7A, US

Dimensions

Height: 7.17 in. (182.00 mm) Width: 1.41 in. (36.00 mm) Depth: 7.01 in. (178.00 mm)

Weight

Minimum: 2.56 lbs (1.16 kg) Maximum: 3.09 lbs (1.40 kg)

Certifications

ENERGY STAR Qualified
