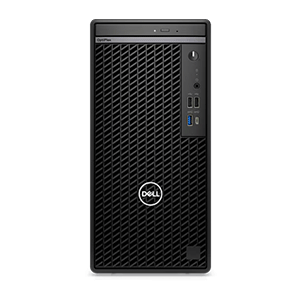

Dell Optiplex 7020 Tower | Intel Core i5-14500 | 16GB DDR5 | 512GB SSD | Intel UHD Graphics 770 | Win11 Pro

Specifications

Processor

14th Gen Intel® Core i5-14500 (24 MB cache, 14 cores, 20 threads, 2.60 GHz to 5.00 GHz Turbo, 65W)

Operating System

Windows 11 Pro

Graphics Card

Integrated Graphics:
Intel® UHD Graphics 770

Memory

16 GB: 1 x 16 GB, DDR5, 4800 MT/s, UDIMM, single-channel

Storage

512 GB, M.2 2230, Gen 4 PCIe NVMe, SSD, Class 25

Case

Dell Standard Black

Ports

Front:
2 USB 2.0 (480 Mbps) ports
1 USB 3.2 Gen 1 (10 Gbps) Type-C® port
1 USB 3.2 Gen 1 (5 Gbps) port
1 Universal Audio Jack

Rear:
2 USB 2.0 (480 Mbps) ports with SmartPower On
2 USB 3.2 Gen 1 (5 Gbps) Type-A Ports
1 DisplayPort 1.4a Port
1 RJ-45 (1 Gbps) Ethernet Port
1 Video Port (VGA/DisplayPort 1.4a/HDMI 2.1) (optional)
1 Serial Port (optional)

Optical Drive

Dell Slimline 8x DVD -/+ RW (optional)

Slots

2 SATA 3.0 slots for hard-disk drive
2 Full-height Gen3 PCIe x1 slots
1 M.2 2230/2280 slot for solid-state drive
1 Full-height Gen3 PCIe x16 slot
1 SATA 2.0 slot for slim optical drive
1 M.2 2230 slot for WiFi and Bluetooth combo card

Dimensions & Weight

Height: 12.77 in. (324.30 mm)
Width: 6.06 in. (154.00 mm)
Depth: 11.50 in. (292.20 mm)
Weight (Minimum): 11.42 lb (5.18 kg)
Weight (Maximum): 14.04 lb (6.37 kg)

Wireless

Intel® Wi-Fi 6E AX211, 2x2, 802.11ax, MU-MIMO, Bluetooth® 5.3 wireless card

Power

180W 80 PLUS Bronze internal power supply unit
