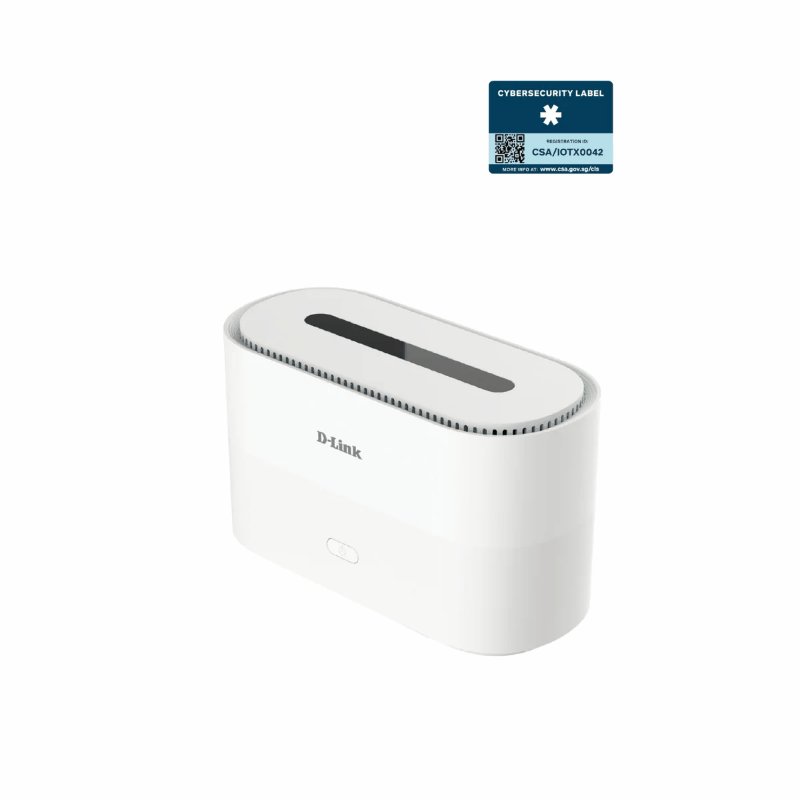

D-Link DWR-X2000 5G AX1800 Wi-Fi 6 Router | 5G NR + 4G LTE | Dual-Band Wi-Fi 6 | Up to 1800 Mbps | 4x Gigabit Ethernet Ports

Specifications

Hardware Specifications

Device Interfaces

• 1 x Gigabit Ethernet WAN/LAN Ports

• 1 x 4FF SIM Slot

• 1 x Power/WPS Button

• 1 x Reset Button

Memory

• ROM: 512MB (NAND)

• RAM: 512MB (DDR3)

5G Modulation

• Download: 2CA

• Upload: 1CA

• 256 QAM

4G Modulation

• Download: 3CA

• Upload: 3CA

• 256 QAM

Antenna

• 6 x 5G/4G Internal Antennas

• 2 x 2.4GHz/5GHz Internal Antennas

Wireless Standard

- IEEE 802.11 b/g/n/ac/ax

Wi-Fi Data Rate

• 2.4GHz: Up to 600Mbps

• 5GHz: Up to 1200Mbps

LED Indicators

• Power Indicator

• 5G Network Indicator

• Wi-Fi Indicator

• Ethernet Indicator

Frequency Bands

5G NR

• FDD: n1, n3, n5, n7, n8, n20, n28

• TDD: n38, n40, n41, n77, n78, n79

4G LTE

• FDD: B1, B3, B5, B7, B8, B20, B28

• TDD: B34, B38, B39, B40, B41

Data Signal Rate

• 5G SA Maximum Data Rate: Download up to 2.0Gbps, Upload 1Gbps

• 5G NSA-EN-DC Maximum Data Rate: Download up to 2.6Gbps, Upload 575Mbps

• LTE FDD Maximum Data Rate: Download up to 600Mbps, Upload 150Mbps

Functionality

WAN Features

• DHCP

• Static IP

• PPPoE

• NAT

• Bridge

Maximum Wi-Fi Clients

- 2.4GHz and 5GHz: Up to 32 devices

Wi-Fi Security

• Open

• WPA2-PSK

• WPA-PSK

• WPA3

General Functions

• Device and SIM Information

• IPv4/IPv6 Dual Stack Support

• Port Mapping

• Dynamic DNS

• SMS/PIN/APN Management

• FOTA Upgrade

• TR-069*

VPN

• L2TP

• GRE

Firewall

• IP/MAC Address Filtering

• Port Forwarding

• Wi-Fi Black/White List

Management

• Web UI

• SNMP

• TR-069*

Hardware

A1

Dimensions

160 x 72 x 53mm

Weight

530g

Power Input

AC 100V?240V, 50Hz?60Hz, 12VDC/1.5A

Power Consumption

Less than 18W

Operating Temperature

0°C to 45°C

Storage Temperature

-20°C to 70°C

Operating Humidity

10% to 95%, non-condensing

Storage Humidity

5% to 95%, non-condensing

Certifications

CE
