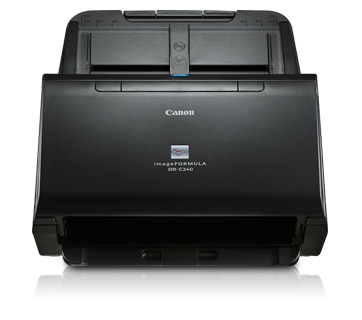

Canon imageFORMULA DR-C240 Desktop Sheet-Fed Scanner | 45 ppm Scanning Speed | 90 ipm Duplex Scanning | 600 dpi Resolution

Technical Specifications

General

Product Name: Canon imageFORMULA DR-C240

Product Type: Desktop Sheet-Fed Scanner

Scanning Element: Contact Image Sensor (CIS)

Light Source: LED

Scanning Side: Simplex / Duplex

Suggested Daily Volume: 4,000 scans a day

Weight: Approximately 2.8 kg (Without AC adapter)

Scanning Specifications

Scanning Speed¹

Greyscale:

• Simplex: 45 ppm

• Duplex: 90 ipm

Colour:

• Simplex: 30 ppm

• Duplex: 60 ipm

Scanning Modes: Black and White, Error Diffusion, 256-level Greyscale, Advanced Text Enhancement, Advanced Text Enhancement II, 24-bit Colour

Output Resolution²: 100, 150, 200, 240, 300, 400, 600 dpi

Scanner Features: Folio Scanning, Double Feed Detection Ignore, 2D / Barcode

Media Handling

Document Size

Plain Paper:

• Width: 50.8 to 216 mm

• Length: 54 to 356 mm

• Long Document Mode: Up to 3,000 mm

Business Card: 50.8 x 85 mm or larger

Card (ISO Standard): 54 x 86 mm

Document Thickness and Weight

Plain Paper ? Page Separation: 27 to 209 g/m² (0.04 to 0.25 mm)

Plain Paper ? Non-Separation: 27 to 255 g/m² (0.04 to 0.3 mm)

Business Card: 380 g/m² (0.45 mm) or smaller

Card: 1.4 mm or smaller

Auto Document Feeder (ADF) Capacity³

60 sheets

Connectivity & Software

Interface: USB 2.0

Drivers: ISIS / TWAIN Drivers

Bundled Software: CaptureOnTouch

Power Specifications

Power Requirements: AC 100?240 V (50 / 60 Hz)

Power Consumption:

• Scanning (Maximum): 19 W

• Sleep Mode: 1.4 W

• Power Switched Off (Maximum): 0.1 W

Environmental Specifications

Operating Temperature: 10 to 32.5°C

Operating Humidity: 20 to 80% RH

Dimensions

When Trays Are Closed (W x D x H): 291 x 253 x 231 mm

When Trays Are Opened (W x D x H): 291 x 603 x 363 mm

Consumables & Accessories

Options / Consumables: Exchange Roller Kit, Carrier Sheet (A4)

Accessories: NA10, Flatbed Scanner Unit 102, Flatbed Scanner Unit 201

Notes

¹ Scanning speeds are based on A4 portrait document size.

² Resolution is expressed as primary scan lines x secondary scan lines.

³ ADF capacity is based on A4 or smaller paper at 80 g/m².
