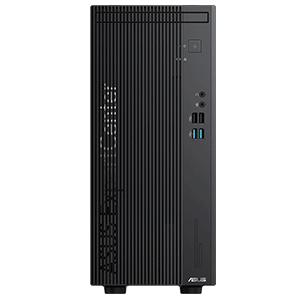

Asus ExpertCenter D5 D501MER-714700015WSM, Intel Core i7-14700 | 16GB RAM | 1TB SSD | Intel Graphics | Win 11

TECHNICAL SPECS:

Model

D501MER

Color

Black

Operating System

Windows 11 Home - ASUS recommends Windows 11 Pro for business
*Some devices for academic use will automatically be updated to Windows 11 Pro Education with the Windows 11 Anniversary Update. Features vary; see https://aka.ms/ProEducation for Windows 11 Pro Education feature information.

Processor

Intel Core i7-14700 Processor 2.1GHz (33MB Cache, up to 5.3GHz, 20 cores, 28 Threads)

Chipset

Intel B760 Chipset

Graphics

Intel Graphics

Memory

2x DDR5 U-DIMM slot, 16GB DDR5 U-DIMM, Memory max up to:64GB

SATA

4 x SATA 6.0Gb/s ports

Storage

1TB M.2 2280 NVMe PCIe 4.0 SSD, 1TB M.2 2280 NVMe PCIe 4.0 SSD

Front I/O Ports

1x Headphone
1x 3.5mm combo audio jack
2x USB 2.0 Type-A
2x USB 3.2 Gen 2 Type-A
1x 2 in 1 card reader SD / MMC
1x Smart card reader

Rear I/O Ports

1x RJ45 Gigabit Ethernet
1x HDMI 1.4
1x VGA Port
1x 7.1 channel audio (microphone, line-out, Line-in)
1x Kensington lock
1x Padlock loop
2x USB 2.0 Type-A
2x USB 3.2 Gen 1 Type-A

Expansion Slots(includes used)

2x PCIe? 3.0 x 1
1x PCIe? 4.0 x 16
1x M.2 connector for WiFi
1x M.2 2280 connector for storage
1x M.2 2280/2230 connector for storage
2x DDR5 U-DIMM slot

Audio

High Definition 7.1 Channel Audio

Network and Communication

Wi-Fi 6(802.11ax) (Dual band) 2*2 + Bluetooth? 5.4 Wireless Card

Power Supply

500W power supply (80+ Platinum)

Weight

06.00 kg (13.23 lbs)

Dimensions (W x D x H)

15.50 x 29.60 x 34.70 cm (6.10" x 11.65" x 13.66")
Not including chassis feet and GPU bracket.

Ecolabels & Compliances

EPEAT Silver
Energy star 8.0
RoHS
REACH

Sustainable Material

58.7%

Security

HDD User Password Protection and Security
Kensington Security Slot?(7x 3mm)
Trusted Platform Module (Firmware TPM)
Padlock loop
Trusted Platform Module (TPM) 2.0
