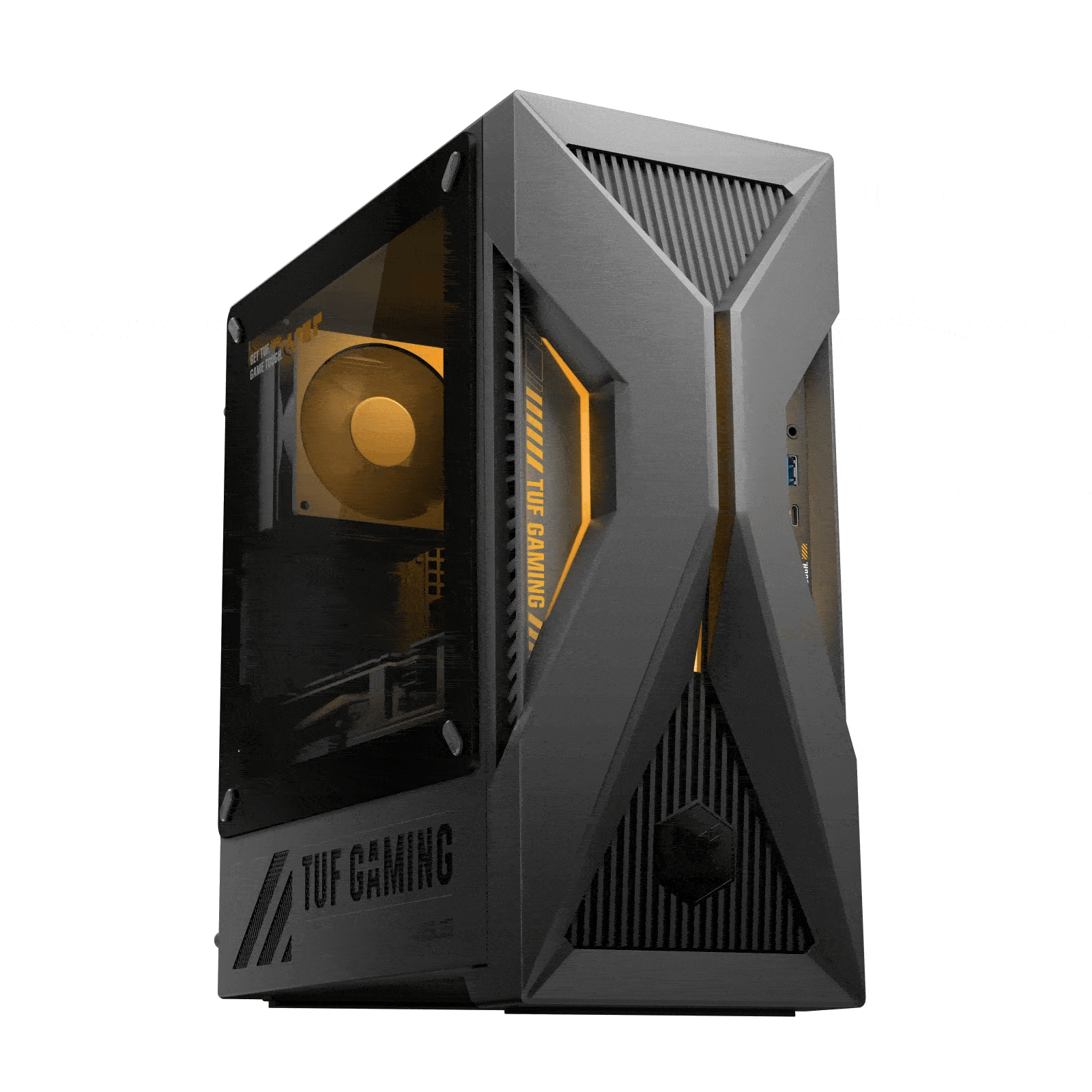

Asus TUF Gaming TM500MH-0R7260009WS Desktop PC | AMD Ryzen 7 260 | 16GB DDR5 | 1TB SSD | AMD Radeon RX9060XT 16GB GDDR6 | Win11

Specifications

Model

TM500MH-0R7260009WS

Color

Solar Eclipse Gray

Operating System

Windows 11 Home

Processor

AMD Ryzen 7 260 Processor 3.8GHz (16MB Cache, up to 5.1 GHz, 8 cores, 16 Threads); AMD Ryzen? AI up to 38 TOPs

Graphics

AMD Radeon RX 9060 XT DUAL 16GB GDDR6: 2xDP, 1x HDMI

Neural processor

AMD Ryzen AI up to 38 TOPs

Memory

2x DDR5 SO-DIMM slot, 16GB DDR5 SO-DIMM, Memory max up to:64GB

SATA

2 x SATA 6.0Gb/s ports

Storage

1TB M.2 2280 NVMe PCIe® 4.0 SSD

Front I/O Ports

2x USB 3.2 Gen 1 Type-A

1x USB 3.2 Gen 1 Type-C

1x 3.5mm combo audio jack

Rear I/O Ports

1x USB 3.2 Gen 1 Type-A

2x USB 2.0 Type-A

1x Kensington lock

1x 7.1 channel audio (microphone, line-out, Line-in)

1x DisplayPort 1.4

1x HDMI 2.1b

1x RJ45 Gigabit Ethernet

Expansion Slots(includes used)

2x M.2 2280 connector for storage

1x M.2 connector for WiFi

1x PCIe® 4.0 x 16 (operating at PCIe® 4.0 x8)

Audio

High Definition 7.1 Channel Audio

Network and Communication

Wi-Fi 6(802.11ax) (Dual band) 2*2 + Bluetooth® 5.4 Wireless Card

Power Supply

330W power supply (80+ Platinum, peak 660W)

Weight

05.90 kg (13.01 lbs)

Dimensions (W x D x H)

15.55 x 29.64 x 34.70 cm (6.12" x 11.67" x 13.66"), not including chassis feet and GPU bracket.

Built-in Apps

MyASUS

MyASUS Features

Link to MyASUS

AppDeals

Fan profile

System diagnosis

Ecolabels & Compliances

REACH

RoHS

Security

Kensington Security Slot?(7x 3mm)

HDD User Password Protection and Security

Discrete Trusted Platform Module (TPM) 2.0

Thermal

Air Cooler
