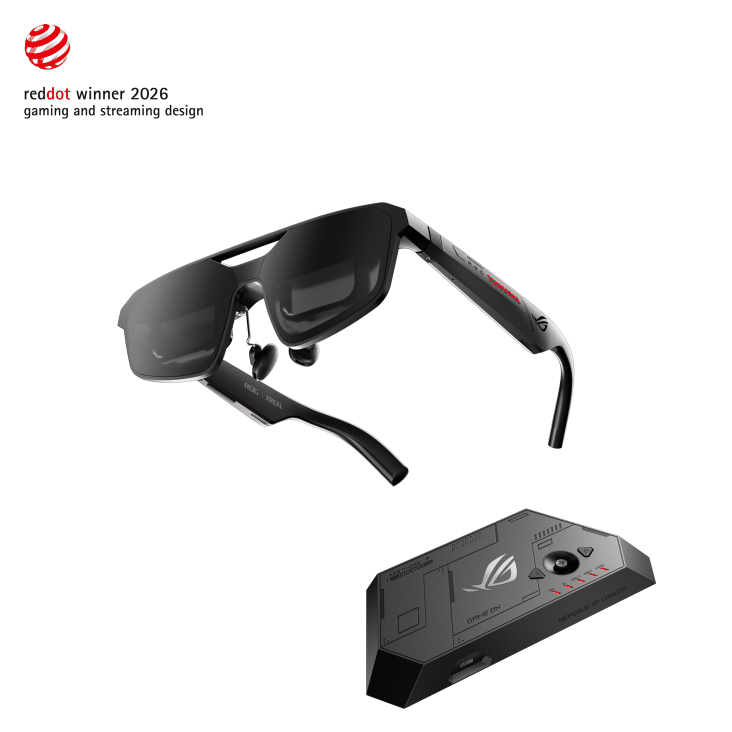

Asus ROG XREAL R1 | Sony Micro OLED 1080p per Eye | 120Hz /240Hz | 0.01ms Response Time | 171in Virtual Screen | ROG Control Dock

Specifications

Model

ASUS ROG XREAL R1

Display

Display Technology: Sony Micro OLED

Panel Size: 0.55"

Resolution: 1920 × 1080 pixels per eye

Refresh Rate: 120Hz, 240Hz with Frame Rate Boost enabled

Panel Response Time: 0.01ms

Motion-to-Photon Latency: 3ms

Maximum Brightness: 700 nits

Color Gamut: 106% sRGB

Field of View: 57°

Virtual Screen Size: Up to 171" at 4 meters

Pixel Per Degree (PPD): 40

Instant 3D: Yes

3D Mode Support: Yes

Electrochromic Dimming Technology: Yes, 3 tint levels

Auto Transparency: Yes, in Anchor Mode

Sensors

Capacitive Sensor

Environment Understanding

Native 3DoF

Audio Features

Speaker: Yes, Sound by Bose

Microphone: Microphone Array with Noise-Canceling

Audio Technology: Phase Cancellation

I/O Ports

1 × USB Type-C with DisplayPort Alt Mode

Mechanical Design

Temples Angle Adjustment: 3 levels

Aura RGB: Yes

IPD (Interpupillary Distance)

Narrow Size: 57?66 mm

Broad Size: 66?75 mm

Physical Dimensions

Phys. Dimension: 15.3 × 4.9 × 16.6 cm (6.02" × 1.92" × 6.53")

Box Dimension: 27.1 × 16.1 × 15.7 cm (10.66" × 6.33" × 6.18")

Weight

Net Weight: 0.09 kg (0.19 lbs)

Gross Weight: 1.360 kg

Accessories

Carrying Case

USB-C Cable

Warranty Card

Quick Start Guide (QSG)

Cleaning Cloth

Detachable Prescription Lens Frame

Nose Pads

ROG Control Dock

2 × USB-A to USB-C Cables

Certifications

TÜV Flicker Free

TÜV Low Blue Light (Hardware Solution)

TÜV Eye Comfort (AR)

FSC MIX

Control Dock Features

GamePlus: Yes

Game Visual: Yes

HDR Compatibility: Yes, HDR10

Dimensions: 21.5 × 2.5 × 10 cm

Weight: 0.23 kg (0.51 lbs)

Control Dock I/O Ports

1 × USB Type-C (Data + Power)

1 × USB Type-C (DC-IN / 5V)

1 × USB Type-C (DisplayPort Alt Mode, Front)

1 × DisplayPort

2 × HDMI
