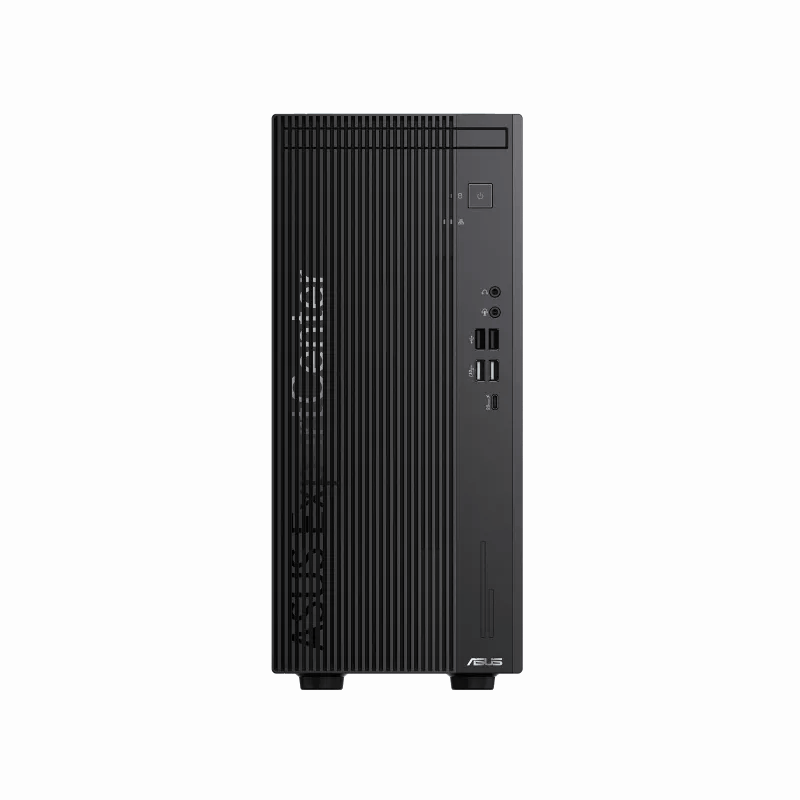

Asus ExpertCenter D7 Mini Tower D701MER-514500492X + VA249HG Monitor | Core i5-14500 | 16GB RAM | 512GB SSD | Intel Graphics | Win11 Pro

Specifications

Model

D701MER

Color

Black

Operating System

Windows 11 Pro

Processor

Intel Core i5-14500

Chipset

Intel® B760 Chipset

Graphics

Intel Graphics

Memory

16GB DDR5 U-DIMM,4x DDR5 U-DIMM slot, Memory max up to:128GB

SATA

4 x SATA 6.0Gb/s ports

Storage

512GB M.2 2280 NVMe PCIe® 4.0 SSD

Optical Drive (Optional)

DVD writer 8X

Front I/O Ports

1x Smart card reader

1x 2 in 1 card reader SD / MMC, 2x USB 3.2 Gen 2 Type-A (10 Gbps)

1x USB 3.2 Gen 2 Type-C (10 Gbps)

2x USB 2.0 Type-A (480 Mbps)

1x 3.5mm combo audio jack

1x Headphone

Rear I/O Ports

2x USB 3.2 Gen 1 Type-A (5 Gbps)

3x USB 2.0 Type-A (480 Mbps)

1x Padlock loop

1x Kensington lock

1x 7.1 channel audio (microphone, line-out, Line-in)

1x Displayport 1.4

1x VGA Port

1x HDMI 1.4

1x RJ45 Gigabit Ethernet

Expansion Slots(includes used)

4x DDR5 U-DIMM slot

1x M.2 connector for WiFi

1x M.2 2280/2230 connector for storage

1x M.2 2280 connector for storage

2x PCIe® 3.0 x 1

1x PCIe® 4.0 x 16

Audio

High Definition 7.1 Channel Audio

Network and Communication

Wi-Fi 6E(802.11ax) (Triple band) 2*2 + Bluetooth® 5.4 Wireless Card

Power Supply

330W power supply (80+ Platinum, peak 660W)

Weight

06.00 kg (13.23 lbs)

Dimensions (W x D x H)

15.50 x 29.60 x 34.70 cm (6.10" x 11.65" x 13.66"), Not including chassis feet and GPU bracket.

Built-in Apps

MyASUS

MyASUS Features

Link to MyASUS

AppDeals

Fan profile

System diagnosis

Ecolabels & Compliances

REACH

RoHS

Energy star 8.0

EPEAT Gold

Sustainable Material

58.7%

Security

Trusted Platform Module (Firmware TPM)

Padlock loop

Kensington Security Slot?(7x 3mm)

HDD User Password Protection and Security, Trusted Platform Module (TPM) 2.0

Monitor: ASUS VA249HG
Screen Size: 23.8-inch
Panel Type: IPS
Resolution: Full HD (1920 x 1080)
Aspect Ratio: 16:9
Refresh Rate: Up to 120Hz
Response Time: 1ms MPRT
Brightness: 300 nits
Contrast Ratio: 1500:1 (Typical), 3000:1 (Maximum)
Viewing Angle: 178° / 178°
Display Surface: Anti-Glare
Display Colors: 16.7 Million Colors

Features:
Adaptive-Sync (VRR)
Motion Sync
GamePlus
QuickFit Plus
DisplayWidget Center
Low Blue Light
Eye Care+ Technology
Flicker-Free Technology
HDCP 1.4 Support

Ports:
1x HDMI 1.4
1x VGA
1x Earphone Jack
1x PC Audio Input

Mechanical Design:
Tilt Adjustment (+23° to -5°)
100 x 100mm VESA Mount Compatible
Kensington Lock

Dimensions with Stand: 54.0 x 40.8 x 19.1 cm
Weight with Stand: 3.2 kg
