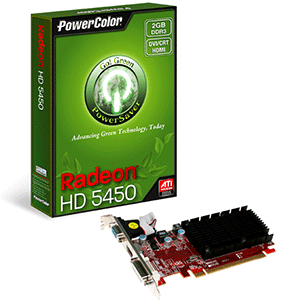

PowerColor HD5450 2GB PCI-E 64bit Low Profile Video Card

Brands In Category

Asus 10 Asus ROG 1 Asus TUF 1 Gigabyte 10 INNO3D 2 MSI 10 Palit 1 Sapphire 2 Zotac 1

Price: Not Available.

Status: Phased Out

Product Description:
2GB DDR3 / 64bit / 650MHz / PCIE 2.1 DVI-D / HDMI / VGA

FEATURES

292 million transistors on 40nm fabrication process
TeraScale 2 Unified Processing Architecture
80 Stream Processing Units
8 Texture Units
16 Z/Stencil ROP Units
4 Color ROP Units
PCI Express 2.1 x16 bus interface
64-bit DDR3
Microsoft® DirectX®11 support
Shader Model 5.0
DirectCompute 11
Programmable hardware tessellation unit
Accelerated multi-threading
HDR texture compression
Order-independent transparency
OpenGL 3.2 support1
Image quality enhancement technology
Up to 12x multi-sample and super-sample anti-aliasing modes
Adaptive anti-aliasing
16x angle independent anisotropic texture filtering
128-bit floating point HDR rendering
ATI Stream acceleration technology
OpenCL 1.0 compliant1
DirectCompute 11
Accelerated video encoding, transcoding, and upscaling2,3
Native support for common video encoding instructions
ATI CrossFireX multi-GPU technology4
Dual GPU scaling
ATI Avivo HD Video & Display technology5
UVD 2 dedicated video playback accelerator
Advanced post-processing and scaling6
Dynamic contrast enhancement and color correction7
Brighter whites processing (blue stretch)8
Dynamic video range control
Support for H.264, VC-1, MPEG-2, and Adobe Flash9
Dual-stream (HD+SD) playback support10,11
DXVA 1.0 & 2.0 support
Integrated dual-link DVI output with HDCP12
Max resolution: 2560x160013
Integrated HDMI 1.3 output with Deep Color, xvYCC wide gamut support, and high bit-rate audio
Max resolution: 1920x120013
Integrated VGA output
Max resolution: 2048x153613
Integrated HD audio controller
Output protected high bit rate 7.1 channel surround sound over HDMI with no additional cables required
Supports AC-3, AAC, Dolby TrueHD and DTS Master Audio formats
ATI PowerPlay power management technology5
Dynamic power management with low power idle state
Certified drivers for Windows 7, Windows Vista, and Windows XP

TECH SPECS

Feature Support
Graphics Engine	RADEON HD5450
Video Memory	2GB DDR3
Engine Clock	650MHz
Memory Clock	500MHz x2
Memory Interface	64bit
DirectX® Support	11
Bus Standard	PCIE 2.1 [Compatibility]
Standard Display Connecors	DL-DVI-D/HDMI/VGA
OpenGL	Support
CrossFireX Technology	Support
ATI Stream Technology	Support
ATI Eyefinity Technology
ATI Hypermemory Technology	Support
Display Support
VGA Output	On Board
DVI Output	Dual Link DVI-I x1
DisplayPort
HDMI	On Board
TV Output
HDTV Output
HDCP Support	Support
Maximum Resolution
VGA	2048x1536
DVI	2560x1600
DisplayPort
HDMI	1920x1200
Power Specs + Board Dimensions
Board Dimensions	168mmx69mmx19mm
Minimum System Power requirement (W)	350W
