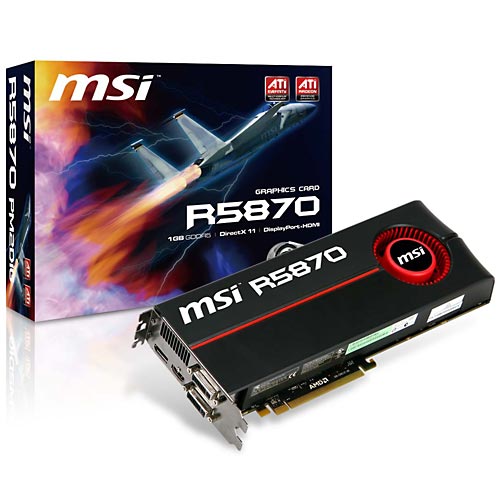

MSI R5870-PM2D1G 1GB/256bit GDDR5

Brands In Category

Asus 10 Asus ROG 1 Asus TUF 1 Gigabyte 10 INNO3D 2 MSI 10 Palit 1 Sapphire 2 Zotac 1

Price: Not Available.

Status: Phased Out

OVERVIEW

Key Messges

Worlds Most Powerful GPU
- 2nd generation 40nm manufacturing process GPU.
-1600 units of stream processors.
DirectX 11 & OpenCL support
-Industry first graphics card supports DX11.
-Support OpenCL (Open Computer Language) to execute parallel computing by GPU.
ATi Eyefinity Technology
- Support up to 3 monitor outputs simultaneously and independently.(one of the outputs must be DisplayPort.)
- Maximum 3 * 2560*1600 resolution.
- Improve work productivity and provide better gaming experience.

Military Class Concept

Solid State Choke
- Pure Iron Core
- New generation, form-in-one choke
- No buzz noise
- Higher maximum current output
- Better protection of power surge
- Designed for overclocking

Solid Capactior
- Aluminum Core
- 10 years ultra long lifetime
- No explosion
- Extreme low ESR
- Lower Temperature
- High efficiency

Features

MSI 3-in-1 High Efficiency Fan
MSI high efficiency fan radiator comes with a heat-pipe, heat-sink and fans. The high-tuned and integrated 2-slot design implementation, not only decreases the GPU temperature rapidly, but also delivers whisper-quiet cooling and ensures quiet operation.(Optional Feature)

MSI Solid Capacitor Graphic Card
MSI Graphics Card products utilities high quality solid capacitor. For the gamers and high-end users, this feature not only means that product has better quality components within, but also provide much stronger support while users want to engage in hard-core tuning.

MSI Vivid is an easy tool to enhance " image quality ". It can helps users to get better image quality in viewing " Digital photos, document & games "
Vivid brings the easiest way to optimize graphic quality.
Colorize your vision when browsing digital photos!!!
Sharpen characters edge!!!
Enhance contrast when playing game!!!

DOT Express (Dynamic Overclocking Technology Express)

MSI DOT Express Technology is the most advanced Dynamic Overclocking Technology Express enabling supreme overclocking, cooling and de-noise performance. It is an advanced overclocking engine, designed to deliver up to 10% extra performance and greatly enhances the synchronized GPU & DDR performance.

MSI Live Update online

MSI Live Update online is designed to automatically download and update the BIOS and driver when theres a new version online. It helps reduce the risk of getting the wrong file and minimize the trouble of searching the files from MSI website.

MSI Live Update 4 is a single utility software that automatically checks BIOS, driver and utility updates and installs for you , which can save your time for searching and lower the risk while updating.

Dual-link DVI convertible output supports Video/Audio signal integration through DVI to HDMI interface, which drivers resolution of a digital display up to 1920x1200 or higher.

MSI graphics cards offer the HDMI functionality to provide access to premium digital content. HDMI enables gaming enthusiasts to seamlessly connect to their LCD monitor to bring the ultimate multimedia experience. (Only 1 single HDMI cable is required while streaming audio/video data to flat-panel display devices, such as Plasma/LCD TVs, or projector.)

The HDCP provides a robust, cost-effective and transparent method for transmitting and receiving digital entertainment similar to DVI/HDMI-compliant digital displays. HDCP encrypts the date transmitted between the DVI/HDMI connector on the graphics adapter and the display.

Both support the latest specifications of Blu-ray and HD DVD(High Definition DVD). It comes with the latest GPU and DDRIII superior processing performance in which users can easily enjoy the high-definition video of 1920x1080(1080p/i).

MSI products are the first to be in conformity of the EUs RoHS(Restriction of Hazardous Substances) regulations, reducing heavy metals and toxic materials in the products. This is an effort made for the Earth, and essentially for a clean future.

Specifications

Video Output Function

DisplayPort x 1
Dual-link DVI x 2
VGA (via DVI to D-Sub adaptor) x 2
HDMI x 1

Bundle MSI developed software

MSI VGA Driver
MSI Live Update Series (Live VGA BIOS & Live VGA Driver)
Automatically online download & update VGA BIOS & Drivers, reduce the risk of getting the wrong files, and never have the trouble on web site searching.
MSI VIVID
Vivid brings the easiest way to optimize graphic quality. Colorize your vision when browsing digital photos!!! Sharpen characters edge!!! Enhance contrast when playing game!!!
MSI Live
including all real time life information you need, such as Live MSI Product News, Live Daily Information, Live Personal Schedule Manager, Live Search and more.
MSI Live
Adobe Acrobat Reader
Microsoft® DirectX
Norton Internet Security 2008 60 days Trial
-Blocks online identity theft by phishing Web sites
-Detects and eliminates spyware
-Removes viruses and Internet worms automatically
-Protects against hackers

Product Accessories


			Optional

MSI Reminds You...
The accessories will probably be different according to the different selling areas of product models. For details of accessories, please refer to the descriptions on the product package.

SPECIFICATIONS

Graphics Engine

ATI Radeon HD 5870

Bus Standard

PCI Express x16 2.1

Memory Type

GDDR5

Memory Size(MB)

1024

Memory Interface

256bit

Core Clock Speed(MHz)

850

Memory Clock Speed(MHz)

4800

Memory Bandwidth(GB/sec)

N/A

Texture Fill Rate(billion/sec)

N/A

DVI Output

D-SUB Output

2(via DVI to D-Sub adaptor)

TV-Output

N/A

HDMI-Output

VIVO(Video-in/out)

N/A

HDTV Support

N/A

HDCP Support

HDMI Support

Dual-link DVI

Display Ouput(Max Resolution)

3x 2560x1600

RAMDACs

400

DirectX Version Support

OpenGL Version Support

3.2

CrossFire Support

SLI Support

N/A

3-way SLI

N/A

HyperMemory Tech.

N/A

TurboCache tech.

N/A

GPU Features

‧Microsoft DirectX 11 Support
‧ATI Eyefinity Technology
‧ATI Stream Technology
‧40 nm Process Technology
‧Advanced GDDR5 Memory Technology
‧2nd Generation TeraScale Engine
‧Microsoft Windows 7 support
‧ATI CrossFireX Technology
‧Enhanced Anisotropic Filtering
‧Accelerated Video Transcoding
‧HDMI 1.3 Support
‧Dolby TrueHD and DTS-HD Master Audio Support
‧ATI PowerPlay Technology Enhanced Support for GDDR5 memory
‧ATI Avivo Technology Enhanced Unified Video Decoder 2 (UVD 2)

All brand name & products are registered trademarks of their respective companies.
All Chipset specs are derived from ATI data sheet. For your reference only.
