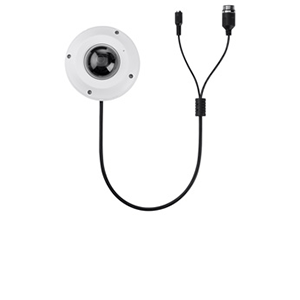

Linksys LCAM0336OD-AP 1080p 3M Outdoor-Indoor 360 Mini-Dome Camera

Brands In Category

Price: Not Available.

Status: Phased Out

Product Description:
Immervision Panomorph Lens / Low-light Performance with Sony CMOS Sensor / Wide Dynamic Range (WDR) / IP67 weatherproof and IK10 vandal-resistant housing

Linksys LCAM0336OD-AP

1080p 3M Indoor-Outdoor 360 Mini-Dome Camera

FEATURES

A large, 5MP image sensor, a free wide dynamic range firmware upgrade, and an automatic IR-filter offer superior video quality with cleaner images in any light.

The camera features night vision, motion detection, audio detection and alarm/event notification to help your business stay alert around the clock.

Wide-angle view, available with a firmware upgrade, captures 5-megapixel viewing angles in a 3-megapixel video display resolution.

Complies with Open Network Video Interface Forum (ONVIF) core specifications, versions 1.0 and 2.0.

Free video surveillance manager software with user, profile and event management capabilities.

The camera features IP67 weatherproof and vandal-resistant housing helps protect the system from both natural and criminal elements.

TECH SPECS

Imaging
Sensor 3 Megapixel Sony CMOS
Maximum Image Resolution 2048 x 1536, 3MP
Video
Maximum Frame Rate 20 fps @ 2048 x 1536
30 fps @ 1920 x 1080
30 fps @ 1280 x 720
Image Compression H.264/MJPEG/MPEG4
Bitrate Control Variable Bitrate and Constant Bitrate
Lens
Fixed/Vari-focal Immvervision 360° Panomorph Lens
Focal Length f= 0.98~1.02mm
Focal Ratio F2.0
Viewing Angle Horizontal: 182°
Vertical: 182°
Minimum Illumination 0.1 lux (B/W)
0.5 lux (Color)
Audio
Compression G.711/AMR
Audio Streaming 1-Way
Built-in Microphone Y
Compliance Information
FCC/IC FCC/IC Class A
CE CE Class A
Water-Proof: IP67-Rated
Vandal-Proof: IK10-Rated
Interface
Ethernet 100Base-T
Power Supply
Power over Ethernet IEEE 802.3af
Maximum Power Consumption < 6W
Environment
Operating Temperature -40°C ~ 50°C
Operating Humidity 10% to 80% Relative Humidity and Non-Condensing
Storage Temperature -20°C to 60°C
Storage Humidity 5% to 90% Non-Condensing
Dimensions
Unit Weight 0.40 kg
Warranty and Support: 1 Year Store Warranty / Lifetime limited warranty
Package Contents: Linksys LCAM0336OD

Located in the Philippines!

Imaging
Sensor	3 Megapixel Sony CMOS
Maximum Image Resolution	2048 x 1536, 3MP
Video
Maximum Frame Rate	20 fps @ 2048 x 1536 30 fps @ 1920 x 1080 30 fps @ 1280 x 720
Image Compression	H.264/MJPEG/MPEG4
Bitrate Control	Variable Bitrate and Constant Bitrate
Lens
Fixed/Vari-focal	Immvervision 360° Panomorph Lens
Focal Length	f= 0.98~1.02mm
Focal Ratio	F2.0
Viewing Angle	Horizontal: 182° Vertical: 182°
Minimum Illumination	0.1 lux (B/W) 0.5 lux (Color)
Audio
Compression	G.711/AMR
Audio Streaming	1-Way
Built-in Microphone	Y
Compliance Information
FCC/IC	FCC/IC Class A
CE	CE Class A
Water-Proof:	IP67-Rated
Vandal-Proof:	IK10-Rated
Interface
Ethernet	100Base-T
Power Supply
Power over Ethernet	IEEE 802.3af
Maximum Power Consumption	< 6W
Environment
Operating Temperature	-40°C ~ 50°C
Operating Humidity	10% to 80% Relative Humidity and Non-Condensing
Storage Temperature	-20°C to 60°C
Storage Humidity	5% to 90% Non-Condensing
Dimensions
Unit Weight	0.40 kg
Warranty and Support:	1 Year Store Warranty / Lifetime limited warranty
Package Contents:	Linksys LCAM0336OD
