Hyper 212X
The latest in the extremely popular Hyper 212 series, Cooler Masters Hyper 212X is based
on the same patented CDC Quad heatpipe array as the 212 EVO but features several
improvements that boost performance and further reduce noise. Thanks to our brand new
Smart Engine and POM bearing, the 212X is incredibly durable and will virtually last a lifetime.

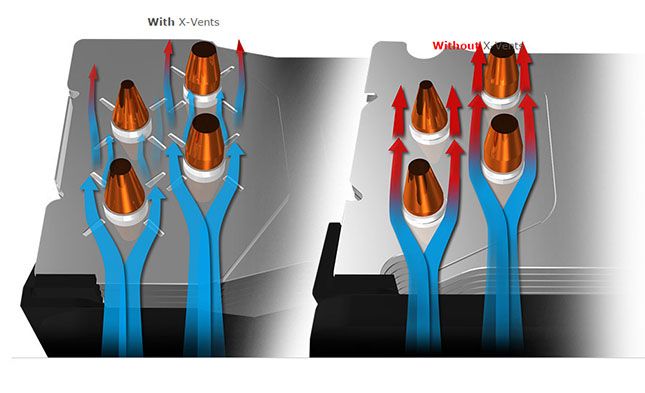

X-Vents Design
Positioned in a 45 degree angle and surrounding the heatpipe, each fin-blade features X-shaped
vents that create areas of high and low air pressure, resulting in several controlled vortices. These
small and chaotic turbulences produce strong gusts that reduce overall airflow but improve airflow
where it matters the most next to the heatpipes.
Patent V Shaped Array
Funnel shaped aluminum fins and a series of perforated dimples guide the airflow towards the heatpipes.
Specially designed X-Vents, that act similar to tiny airplane wings and prevent deadspots behind and
between heatpipes. The combination of both of these patent technologies results in notably higher airflow
over the heatpipes and the adjacent fin area, which ultimately reduces CPU temperatures.
The specially designed X-Vents act similar to tiny airplane wings and prevent deadspots behind and
between heatpipes. The combination of these patented technologies results in a notably higher airflow
over the heatpipes and the adjacent fin area, ultimately reducing CPU temperatures.
Patented CDC Technology
4 Continuous Direct Contact Heatpipes create a gap-less contact surface for unmatched cooling efficiency.
Optimized fin design
Aluminum Fin Array with Tunnel Effect layout creates micro vortices that boost the
airflow and circulate it around the heatpipes.
Supports all current CPU Sockets
Fast and easy to install and extremely reliable, our famous X-Bracket mounting system
is compatible with all current sockets.
POM Bearing
The POM bearing is coated with Polyoxymethylene material. This type of material is ideal for
precision parts requiring high stiffness and provides consistently lower friction levels than traditional
bearings. Self-lubricating, lower friction, and dustproof protection, ensures the average lifetime is
pushed up to an incredible 160,000 hours.
TECH SPECS
| Model | RR-212X-20PM-R1 |
| CPU Socket | Intel LGA 2011-3/2011/1366/1156/1155/1150/775
AMD FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2 |
| Dimension | 120 x 79 x 158 mm / 4.7 x 3.1 x 6.2 inch |
| Heat Sink Dimensions | 116 x 51 x 158 mm / 4.6 x 2.0 x 6.2 inch |
| Heat Sink Material | 4 Direct contact heatpipes / Aluminum fins |
| Heat Sink Weight | 492g / 1.1lb |
| Heat Pipes Dimensions | ø6mm |
| Fan Dimension | 120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch |
| Fan Speed | 600 - 2,000 RPM (PWM) ± 10% |
| Fan Airflow | 24.9 - 82.9 CFM ± 10% |
| Fan Air Pressure | 0. 3 - 2.09 mm H2O ± 10% |
| Fan Life Expectancy | 160,000 hours |
| Fan Noise Level (dB-A) | 9 - 36 dBA |
| Bearing Type | 4th Generation Bearing |
| Connector | 4-Pin |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.37A |
| Power Consumption | 4.44W (max) |
| Fan Weight | 106g / 0.2lb |
| EAN / UPC Code | 4719512039526 / 884102018862 |
