Cisco Linksys WAP321-A-K9 Wireless-N Selectable-Band Access Point w/ PoE and Gigabit Ethernet

Cisco Linksys WAP321-A-K9 Wireless-N Selectable-Band Access Point w/ PoE and Gigabit Ethernet
Price: 10,288
Product Description:
Up to 300Mbps Wireless Data Rates / IEEE 802.11a/b/g/n, IEEE 802.3/3u/3ab, IEEE 802.3af / Ethernet Port / 1 x 10/100/1000M, DC Power / Selectable-band 2.4GHz or 5GHz (not concurrent)
Cisco WAP321-A-K9 Wireless-N Selectable-Band
Access Point with Power over Ethernet

Highlights
Provides selectable-band high-bandwidth 802.11n wireless connectivity for maximum performance
Supports high-speed connections with Gigabit Ethernet LAN interface for demanding applications
Single Point Setup simplifies the deployment of multiple wireless access points
Bridges wired LANs together wirelessly to reduce cabling and installation costs
Easy to set up and manage by using the configuration wizard
Safeguards business information with enhanced security, including advanced encryption, secure authentication, and rogue access point detection

Product Overview
As business applications become more powerful and sophisticated, organizations are looking for new ways to extend
the performance and reach of their office networks. Delivering secure, high-speed wireless connectivity to
employees, partners, and guests anywhere in the office is key. The Cisco WAP321 Wireless-N Selectable-Band
Access Point with Single Point Setup makes it easy to deliver advanced 802.11n wireless networking with
business-class features - at an affordable price. This flexible solution is perfect for connecting up to 20
employees on a single WAP321. With Single Point Setup, the wireless LAN can scale up to a total of eight WAP321
devices to provide broader coverage and to support additional users as business needs change.

Built specifically for small businesses, the Cisco WAP321 offers selectable-band 802.11n wireless technology to
deliver high throughput and extended range throughout your office. Advanced quality-of-service (QoS) features let
you prioritize traffic to support bandwidth-sensitive applications. This sophisticated control enables you to take
advantage of voice over WLAN (VoWLAN) to place or receive calls over the wireless LAN infrastructure.

Designed for growing organizations, the Cisco WAP321 offers the ability to smoothly scale your network by bridging
wired LANs together wirelessly, to reduce cabling and installation costs. It supports multiple Service Set
Identifiers (SSIDs) to enable you to segregate traffic for different departments, users, and communication devices.

For companies that need to provide secure wireless guest access, the Cisco WAP321 offers captive portal support
that lets you create a wireless hotspot with visitor authentication.

The Cisco WAP321 is simple to set up and use, with intuitive wizard-based configuration to get you up and running
in minutes. A sleek, compact design with flexible mounting options enables the access point to smoothly blend into
any small business environment. Power over Ethernet (PoE) support makes the device easy to install without the
need for separate power plugs or expensive new wiring.

To enhance reliability and safeguard sensitive business information data, the Cisco WAP321 supports WiFi Protected
Access (WPA2), encoding all your wireless transmissions with powerful encryption. 802.1X RADIUS authentication
helps keep unauthorized users out. Single Point Setup is a controllerless multi-access point deployment technology
that allows you to deploy and manage multiple access points in a simple and cost-effective way across your premises.

Single Point Setup provides a unique centralized method to administer and control wireless services across multiple
devices. Via one access point on the LAN, you have a single view of the whole WLAN to replicate configuration,
security, and management across all access points.


With the Cisco WAP321, you can build on your existing network to deliver high-performance wireless access with the
scalability you need as your business grows and evolves.

Figure 1 shows a typical configuration using this wireless access point. Figures 2 and 3 show the front and back,
respectively, of the Cisco WAP321 Wireless-N Selectable-Band Access Point with Single Point Setup.

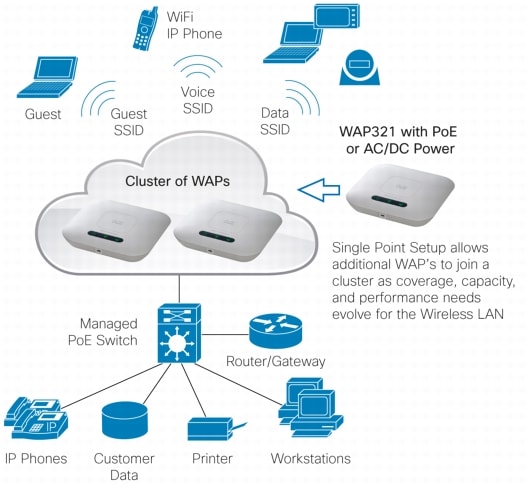

Figure 1. Typical Configuration

Figure 2. Front Panel of the Cisco WAP321 Wireless-N Selectable-Band Access Point with Single Point Setup

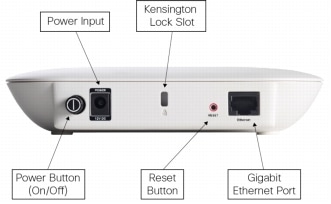

Figure 3. Back Panel of the Cisco WAP321 Wireless-N Selectable-Band Access Point with Single Point Setup
Description: Description: C:UsersccalziaDocumentsCisco JobsCISSMY-17965 WAP321 data sheet_LinksFig-3_WAP321_back.jpg

Features
  • Highly secure, high-speed 802.11n wireless networking delivers enhanced throughput and extended range for bandwidth-intensive applications.
  • Wizard-based setup and configuration enables fast, simple deployment.
  • Single Point Setup controllerless multi-access point deployment and management technology makes configuration simple.
  • Gigabit Ethernet LAN interface provides high-speed connectivity for faster downloads and demanding applications.
  • Selectable-band wireless access lets you switch bands to minimize interference from other office devices and improve performance.
  • Robust security, including WPA2, 802.1X with RADIUS secure authentication, and rogue access point detection, helps protect sensitive business information.
  • Support for PoE enables easy installation without the expense of additional wiring.
  • Workgroup Bridge mode lets you expand your network by wirelessly connecting to a second Ethernet network.
  • Elegant, compact design with internal antennas and versatile mounting kit enables installation on a ceiling, wall, or desktop.
  • Intelligent QoS prioritizes network traffic to keep critical network applications running at top performance.
  • Power-saving sleep mode and port control features help maximize energy efficiency.
  • Highly secure guest access enables safe wireless connectivity for visitors.
  • Support for IPv6 lets you deploy future networking applications and operating systems without costly upgrades.
Specifications
Table 1 lists the specifications, package contents, and minimum requirements
for the Cisco WAP321 Wireless-N Selectable-Band Access Point with Single Point Setup.

Table 1. Specifications

Specifications

Description

Standards

IEEE 802.11n, 802.11g, 802.11b, 802.3, 802.3u, 802.1X (security authentication), 802.1Q (VLAN), 802.11i (WPA2 security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460)

Ports

Ethernet, Power

Switch

Power button (on/off)

Buttons

Reset

Cabling type

Category 5e or better

LEDs

Power, Wireless, LAN

Operating system

Linux

Physical Interfaces

Ports

Gigabit Ethernet, 12V DC power with support for 802.3af PoE

Power supply

Not included with access point, but supports external power 12V DC power jack (Energy Star 2.0 compliant with Efficiency Level 5) and 802.3af PoE

Buttons

Power (on/off) push button; Reset button

Lock slot

Slot for Kensington lock

LED

Power, Wireless, Ethernet

Physical Specifications

Physical dimensions (W x D x H)

6.66 x 6.67 x 1.38 in. (169.08 x 169.42 x 35 mm)

Weight

0.606 lb or 275g

PoE

PoE

802.3af

Peak PoE power

10.6W

Network Capabilities

Network protocols

IEEE 802.11n, 802.11g, 802.11b, 802.3, 802.3u, 802.1X (security authentication), 802.1Q (VLAN), 802.11i (WPA2 security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460), RADIUS, syslog, HTTP/HTTPS, Simple Network Management Protocol (SNMP)

VLAN support

Yes

Number of VLANs

1 management VLAN plus 8 VLANs for SSID

Multiple SSIDs

8

802.1X supplicant

Yes

802.11d

No

SSID to VLAN mapping

Yes

Auto channel selection

Yes

Spanning tree

Yes

Load balancing

Yes

IPv6

Yes

• IPv6 host support
• IPv6 RADIUS, syslog, Network Time Protocol (NTP), etc.

Layer 2

802.1Q-based VLANS, 8 active VLANS plus 1 management VLAN

Security

WEP/WPA/WPA2

Yes, including Enterprise authentication

Access control

Yes, management access control list (ACL) plus MAC ACL

Secure management

HTTPS

Wi-Fi Protected Setup (WPS)

Yes (soft WPS, no hardware push button)

SSID broadcast

Yes

Rogue access point detection

Yes
