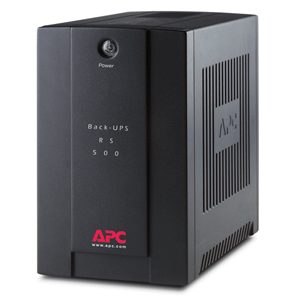

APC BR500CI-AS, 230V without auto shutdown software

Brands In Category

APC 14 AWP 5 Belkin 1 Eaton 5 Emerson 1 Secure 1 Vertiv 1

APC BR500CI-AS, 230V without auto shutdown software

Price: Not Available.

Status: Phased Out

Product Description:
300 Watts / 500 VA,Input 230V / Output 230V

Output

Output Power Capacity

300 Watts / 500 VA

Nominal Output Voltage

230V

Output Frequency (sync to mains)

47 - 63 Hz

Waveform Type

Stepped approximation to a sinewave

Output Connections

(3) IEC 320 C13 (Battery Backup)

Input

Nominal Input Voltage

230V

Input Frequency

50/60 Hz +/- 3 Hz (auto sensing)

Input Connections

IEC-320 C14

Cord Length

1.83 meters

Batteries & Runtime

Battery Type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time

10 hour(s)

RBC Quantity

Runtime Graph

Communications & Management

Audible Alarm

Alarm when on battery : distinctive low battery alarm

Surge Protection and Filtering

Surge energy rating

240 Joules

Physical

Maximum Height

185.00 mm

Maximum Width

115.00 mm

Maximum Depth

213.00 mm

Net Weight

4.90 KG

Shipping Weight

5.50 KG

Shipping Height

257.00 mm

Shipping Width

190.00 mm

Shipping Depth

291.00 mm

Color

Black

SCC Codes

0073130426979 3

Environmental

Operating Environment

0 - 40 °C

Operating Relative Humidity

0 - 95%

Operating Elevation

0-3000 meters

Storage Temperature

-15 - 45 °C

Storage Relative Humidity

0 - 95%

Storage Elevation

0-15000 meters

Audible noise at 1 meter from surface of unit

0.00 dBA

Conformance

Standard Warranty

2 years repair or replace

Environmental Compliance

RoHS 7b Exemption,REACH: Contains No SVHCs
