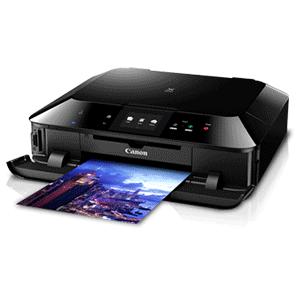

Canon PIXMA MG7170 with Intelligent Wi-Fi and AirPrint

Brands In Category

Price: Not Available.

Status: Phased Out

Product Description:
Colour inkjet printer, copier and scanner / ISO standard print speed (A4): up to 15ipm mono / 10.0ipm colour / Prints a 4 x 6" borderless photo in 21secs.

PIXMA MG7170

Express your individuality with PIXMA MG7170 in 3 exciting colours red, brown and black.

Plus you can now print remotely on demand anywhere in the world with features like intelligent

Wi-Fi and AirPrint

Colour inkjet printer, copier and scanner
ISO standard print speed (A4): up to 15ipm mono / 10.0ipm colour
Prints a 4 x 6" borderless photo in 21secs.

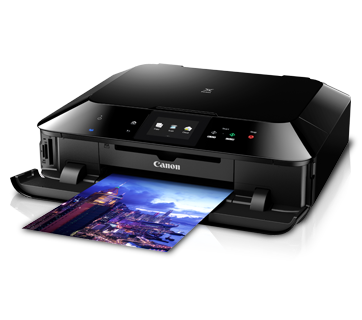

PIXMA MG7170 - Canon Singapore - Personal

PIXMA Printing Solutions App

The PIXMA Printing Solutions App available on both iOS and Android platforms, gives users

a lot more functionality with their printers. Using a smartphone or tablet device, users can print

documents and images stored on their devices, or scan a document directly into their devices.

PIXMA Cloud Link

A cloud service that connects to a whole variety of Internet-based services.

It can link to photo sharing sites such as Picasa, Photobucket and Flickr, social networking

sites like Facebook and Twitter, and storage sites like Evernote, Dropbox and Box.

Linking to these services allows users to print images and documents located on the Internet

Access Point Mode

Wth Access Point Mode, smart devices can now bypass the need for a wireless

LAN and just directly connect to the printer.

Print From Email

New "Print from E-mail" function allows users to print jpeg and pdf files by sending

them to a designated printer's email address*.

* certain restrictions apply.

Wireless PictBridge

With wireless PictBridge function, you can print photos directly from your Wi-Fi enabled camera.

There's no need for a PC or USB wire.

Intelligent Touch System

Now comes with a 3.5" intelligent touch-screen panel for an intuitive and comfortable

interface. The operation panel literally disappears when not in use. But the moment you

touch the power button, LED-illuminated operation buttons appear. Only task-specific buttons

which you need to complete the job will remain illuminated.

TECH SPECS

Print
Maximum Printing Resolution	9600 (horizontal)*¹ x 2400 (vertical)dpi
Print Head / Ink	Type:	Individual ink tanks
	Number of Nozzles:	Total 6,656 nozzles
	Ink Droplet Size (minimum):	1pl
	Ink Cartridge:	PGI-750 (Pigment Black), CLI-751 (Cyan, Magenta, Yellow, Black, Gray) [Optional: (PGI-750XL (Pigment Black , CL-751XL (Cyan, Magenta, Yellow, Black, Gray)]
Print Speed Based on ISO / IEC 24734. Click here for summary report Click here for Document Print and Copy Speed Measurement Conditions	Document: Colour*²: ESAT / Simplex:	Approx. 10.0ipm
	Document: B/W*²: ESAT / Simplex:	Approx. 15.0ipm
	Photo (4 x 6")*²: PP-201 / Borderless	Approx. 21secs.
Printable Width	Up to 203.2mm (8 inch)
Printable Width	Borderless:	Up to 216mm (8.5 inch)
Printable Area	Bordered Printing*³:	Top / Bottom / Right / Left margin: each 0mm (Supported Paper Size: A4, LTR, 4 x 6" , 5 x 7", 8 x 10")
	Bordered Printing:	Top margin: 3mm, Bottom margin: 5mm, Left / Right margin: each 3.4mm (LTR / LGL: Left: 6.4mm, Right: 6.3mm)
	Bordered Auto 2-sided printing:	Top margin: 5mm, Bottom margin: 5mm, Left / Right margin: each 3.4mm (LTR / LGL: Left: 6.4mm, Right: 6.3mm)
Recommended Printing Area	Top Margin:	40.7mm
Recommended Printing Area	Bottom Margin:	37.4 mm
Paper Size	A4, A5, B5, LTR, LGL, 4 x 6", 5 x 7", 8 x 10", Envelopes (DL, COM10), Custom size (cassette (upper): width 89 - 200mm, length 127 - 184.99mm, cassette (lower): width 90 - 215.9mm, length 185 - 355.6mm)
Paper Handling [Cassette, (Upper)] (Maximum Number)	Photo Paper Pro Platinum (PT-101)	4 x 6" = 20
	Photo Paper Plus Glossy II (PP-201)	4 x 6" = 20
	Photo Paper Plus Semi-Gloss (SG-201)	4 x 6" = 20
	Glossy Photo Paper "Everyday Use" (GP-501) Glossy Photo Paper "Everyday Use" (GP-601)	4 x 6" = 20
	Matte Photo Paper (MP-101)	4 x 6" = 20
	Photo Stickers (PS-101)	1
Paper Handling [Cassette (Lower)] (Maximum Number)	Plain Paper	A4, A5, B5, LTR, LGL = 125
	High Resolution Paper (HR-101N)	A4 = 65
	Photo Paper Pro Platinum (PT-101)	A4 =10
	Photo Paper Plus Glossy II (PP-201)	A4 =10
	Photo Paper Pro Luster (LU-101)	A4 =10
	Photo Paper Plus Semi-Gloss (SG-201)	A4, 8 x 10" = 10
	Glossy Photo Paper "Everyday Use" (GP-501) Glossy Photo Paper "Everyday Use" (GP-601) (Asia only)	A4 =10
	Matte Photo Paper (MP-101)	A4 =10
	T-Shirt Transfer (TR-301)	1
	Envelope	European DL / US Com. #10 = 10
	Other Fine Art Paper	A4, LTR = 1
Paper Handling (Disc tray)	1 (Manual handling by disc tray)
Support Media for Auto 2-sided printing	Type:	Plain Paper
Support Media for Auto 2-sided printing	Size:	A4, A5, B5, LTR
Paper Weight	Cassette (upper):	Canon specialty paper: max paper weight : Approx. 300g/m² (Photo Paper Pro Platinum PT-101)
Paper Weight	Cassette (lower):	Plain Paper: 64 - 105g/m² , Canon specialty paper: max paper weight : Approx. 300g/m² (Photo Paper Pro Platinum PT-101)
Ink End Sensor	Optical sensor +Dot count
Print Head Alignment	Auto / Manual
Scan*⁴
Scanner Type	Flatbed
Scanning Method	CIS (Contact Image Sensor)
Optical Resolution*⁵	2400 x 4800dpi
Selectable Resolution*⁶	25 - 19200dpi
Scanning Bit Depth (Input / Output)	Grayscale:	16 bits / 8 bits
Scanning Bit Depth (Input / Output)	Colour:	48 bits / 24 bits (RGB each 16 bits / 8 bits )
Line Scanning Speed*⁷	Grayscale:	1.2ms/line (300dpi)
Line Scanning Speed*⁷	Colour:	3.5ms/line (300dpi)
Scanning Speed*⁸	Reflective: A4 Colour / 300dpi	Approx. 14secs.
Maximum Document Size	Flatbed:	A4 / LTR (216 x 297mm)
Copy
Maximum Document Size	A4 / LTR (216 x 297mm)
Compatible Media	Size:	A4, A5, B5, LTR, 4 x 6", 5 x 7"
Compatible Media	Type:	Plain Paper Photo Paper Pro Platinum (PT-101) Photo Paper Plus Glossy II (PP-201) Photo Paper Pro Luster (LU-101) Photo Paper Plus Semi-Gloss (SG-201) Glossy Photo Paper "Everyday Use" (GP-501 / GP-601) Matte Photo Paper (MP-101) Printable Disc
Image Quality	3 positions (Fast, Standard, High)
Density Adjustment	9 positions, Auto intensity (AE copy)
Copy Speed*⁹ Based on ISO / IEC 29183. Click here for summary report Click here for Document Print and Copy Speed Measurement Conditions	Document: Colour: sFCOT / Simplex:	Approx. 14secs.
	Document: Colour: sESAT / Simplex:	Approx. 7.7ipm
Multiple Copy	Black / Colour:	99 pages
Network
Protocol	TCP/IP
Wired LAN	Network Type:	IEEE802.3u(100BASE-TX) / IEEE802.3(10BASE-T)
Wired LAN	Data Rate:	10M / 100Mbps (auto switchable)
Wireless LAN	Network Type:	IEEE802.11n / IEEE802.11g / IEEE802.11b (infrastructure mode)
	Frequency Band:	2.4GHz
	Range:	indoor 50m (depends on the transmission speed and conditions)
	Security:	WEP64 / 128bits, WPA-PSK (TKIP / AES), WPA2-PSK (TKIP / AES)
System Requirements (Please visit www.canon-asia.com to check OS compatibility and to download the latest driver updates.)	Windows:	Windows 8 / Windows 7 / Window Vista / Windows XP
	Macintosh:	Mac OS X v10.6.8 or later
General
Quick Start	Approx. 6secs.
Operation Panel	Display:	LCD (3.5inch / 8.8cm TFT colour)
Apple AirPrint	Available
Google Cloud Print	Available
PictBridge	Wireless LAN:	Available
PictBridge	LAN:	Available
PIXMA Cloud Link	From smartphone or tablet:	Available
PIXMA Cloud Link	From printer:	Available
Print from Email	Available
PIXMA Printing Solutions	Available
Access Point Mode	Available
Self-Opening Paper Output Tray	Available
Interface	USB 2.0 Hi-Speed, Card Slots
Operating Environment	Temperature:	5 - 35°C
Operating Environment	Humidity:	10 - 90% RH (no dew condensation)
Storage Environment	Temperature:	0 - 40°C
Storage Environment	Humidity:	5 - 95% RH (no dew condensation)
Acoustic Noise (PC Print)	Photo (4 x 6")*¹⁰	Approx. 44.2dB(A)
	Document (A4, B/W)*¹¹ Quiet Mode OFF:	Approx. 52.5dB(A)
	Document (A4, B/W) Quiet Mode ON:	Approx. 40.8dB(A)
Power	AC 100 - 240V, 50 / 60Hz
Power Consumption	Standby (scanning lamp is off) (USB connection to PC):	Approx. 1.0W
	OFF:	Approx. 0.2W
	Copying*¹²: (USB connection to PC)	Approx. 17W
Environment	Regulation:	RoHS (EU, China), WEEE (EU)
Environment	Eco-Label:	Energy Star, EPEAT
Dimension (W x D x H)	Approx. 466 x 369 x 148mm
Weight	Approx. 8.2kg
