The centerpiece of the Aspire Switch 12 is its convertible multiple mode design that rolls
five modes into one, making it more of a 5-in-1 than a 2-in-1. The five handy configurations
include notebook, pad, display, tent and desktop modes, providing a mode for practically any need.
The Intel® Core™ M processor is a compelling combination of computing and display
graphics power. It also incorporates several other advanced Intel technologies which
together add up to a big advance in computing power and reduction in power consumption.

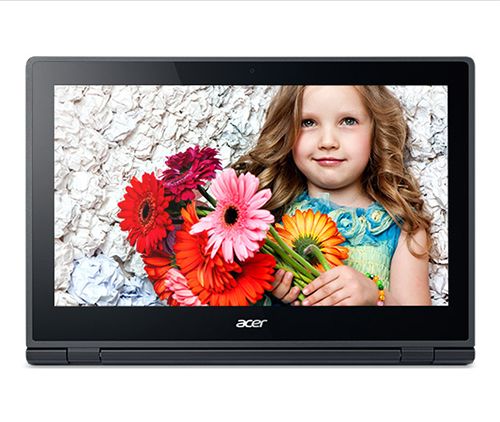

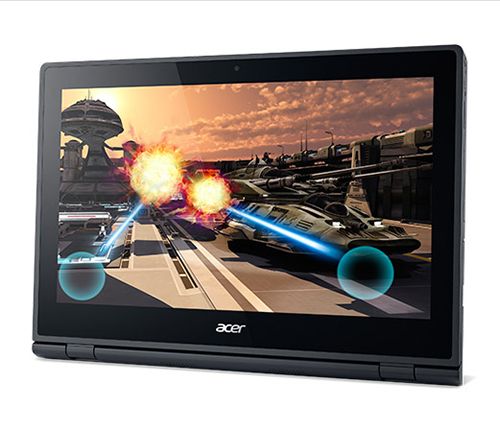

With a big 12.5" screen, the Aspire Switch 12 sports a Full HD display with technologies
that let you see everything clearly from almost any angle, with vivid colors and detail, even in
bright sunlight. The highly responsive touch screen also has an effective anti-fingerprint
treatment that greatly reduces unsightly smudges.

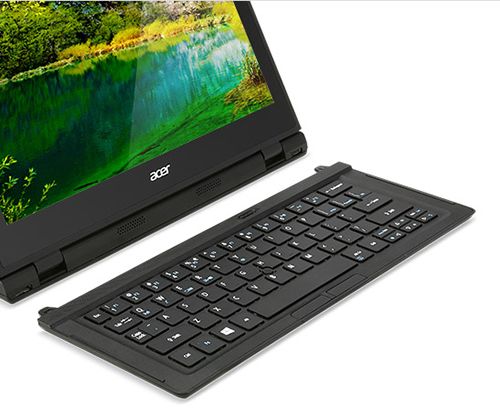

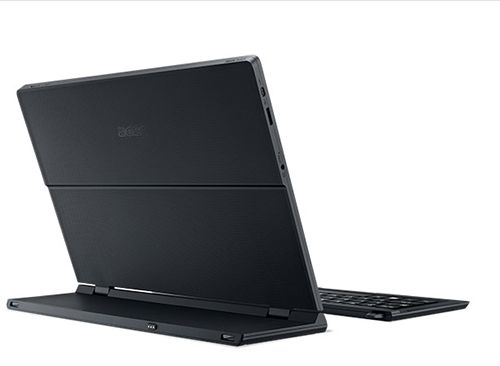

The Aspire Switch 12’s distinctive kickstand design is at the core of its multi-mode capability,
housing and functioning as the connector to the detachable keyboard which works as a
connected keyboard in some modes and a wireless one in others.

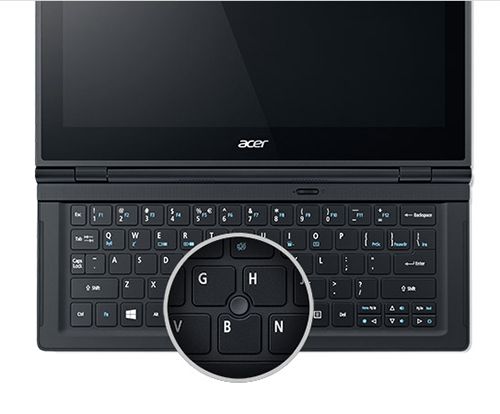

With several unique features, the Aspire Switch 12’s keyboard deserves mention. In addition to
offering full-size typing comfort and wireless capabilities, it has a built-in mouse stick in the middle,
instead of a trackpad, providing a convenient pointing experience and space saving benefits.
Designed for all-round durability, the Aspire Switch 12 uses next generation Corning® Gorilla®
Glass to protect the display and has a latch-less magnetic keyboard connector tab design for
easy mode switching, while offering a sturdy mechanical connection. It also features a whisper
quiet, fan-less design that complements the very low power consumption processor.

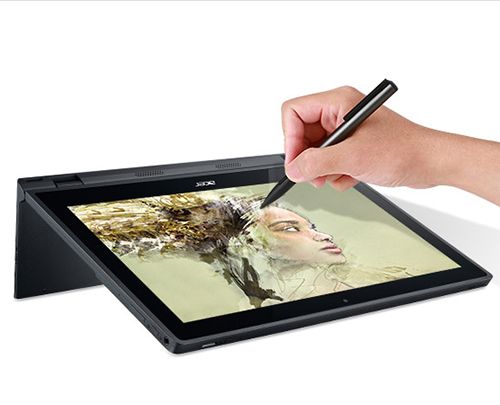

Acer Active Pen
The optional Acer Active Pen1 adds another dimension to the Aspire Switch 12’s dynamic
productivity features -- facilitating fast, precise input for writing, drawing or just plain doodling.
It’s great for everything from annotating documents to making quick notes in your diary.
Model : Acer Aspire Switch 12 SW5-271-63V0
Processor : Intel Core M-5Y10a Processor (4M Cache, up to 2.00 GHz)
Memory : 4GB of onboard LPDDR3 memory
Storage : 128G SSD
Display Screen : 12.5-inch display with IPS (In-Plane Switching) technology, FHD 1920 x 1080
resolution, high-brightness, LED-backlit TFT LCD with integrated
multitouch, supporting 10-finger touch
Wide viewing angle, 16:9 aspect ratio
Mercury free, environment friendly
Graphics : Intel® HD Graphics 5300, supporting OpenGL® 4.2, OpenCLTM 1.2,
Microsoft® DirectX® 11.1
Audio : Two built-in stereo speakers
Built-in digital microphone
Sensors : Ambient light sensor
Intelligent gyroscope, accelerometer (G sensor) and e-compass
WLAN : Acer InviLinkTM NplifyTM 802.11a/b/g/n wireless LAN
Operates at 2.4 GHz and 5 GHz
2x2 MIMO technology
WPAN : Bluetooth® 4.0
Weight : 1.4 kg (3.09 lbs.) with 3-cell battery pack
Dimension : 317 (W) x 220.6 (D) x 9.5/16.5 (H) mm (12.48 x 8.69 x 0.37/0.65 inches) pad and dock
Color : Black
Battery Type : 36 Wh 3220 mAh 11.4 V 3-cell Li-ion battery pack
(for models with Full HD Panel + SSD)
Battery Life : Up to 8 hours (based on video playback test results)
Camera : Acer Crystal Eye HD webcam with:
1280 x 720 resolution
720p HD audio/video recording
Standard : 3.5 mm headphone/speaker jack, supporting headsets with built-in microphone
I/O Ports • HDMI® Micro Connector with HDCP support
• Micro USB 3.0 port, Type B
• HDMI® Micro Connector with HDCP support
• USB 2.0 port
Operating System : Windows 8.1 / 10
